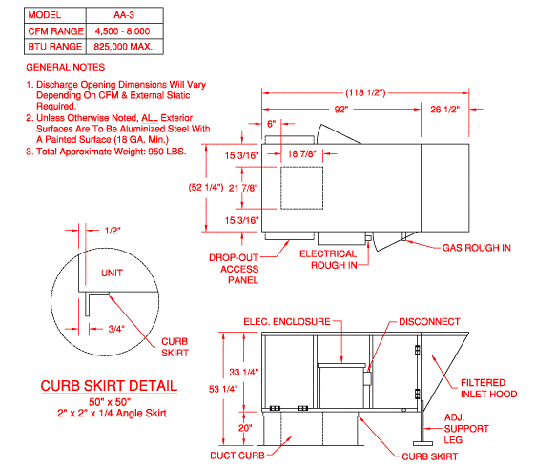

AA-3
Standard Features
- Horizontal or Upright Cabinets
- Choice of Discharge Configurations
- Weather-Resistant, Heavy-Gauge Aluminized Steel Construction
- Designed to ANSI Standards
- 30:1 Burner Turndown Capability
- Maxitrol Series 14 Discharge Temperature Controls with Temp. Dial at the Unit (Some Models)
- Maxitrol Series 14 Discharge Temperature Controls with Remote Temp. Dial (Some Models)
- Multiple Hinged-Access Doors (Most Models)
- Durable Two-Coat Paint Finish (Owner-Matched Colors at No Extra Cost)
- Factory Piped and Wired
- Control Circuit Fusing
- Automatic Gas Modulation
- High- and Low-Temp. Limit Switches
- Flame Safeguard Controls with Remote Flame Reset
- U.V. Flame Detection (> ½" gas inlet)
- Non-Fused Disconnect Switch (Except on AA1700)
- Low Fire Start
- Motor Starter and Overload Protection
- Low Airflow Switch
- Fan Bearings Rated to a Minimum of 100,000 Hours (L-10 Life)
- Remote Control Panel (NEMA 5 Enclosure)
- Main Electrical Panel (NEMA 3R Enclosure)
- 100% Factory Testing
Optional Features
- ETL Certification to ANSI Design Standards
- FM or IRI Manifolds
- Maxitrol Series 14 Discharge Temperature Controls with Remote
- Temp. Dial (for AA1700 through AA3 Models)
- Maxitrol Series 44 Space Temperature Controls with Remote
- Thermostat (Standard on "F" Model Option.)
- DFM Space Temperature Controls with Digital Display and Build-In
- Time Clock (Standard on "M" and "B" Model Options.)
- Inlet Hoods or Plenums for Horizontal Models
- Cabinet Legs or Plenums for Upright Models
- Insulated Cabinet
- Double-Wall Construction
- Multiple Filtering Choices
- Motorized Inlet or Discharge Dampers
- Full or Duct Curb, Flat or Pitched
- Fused Disconnect Switch
- Vibration Isolation (Internal or External)
- Motor Belt Guards
- Service Platforms
- Three- and Four-Way Discharge Diffusers with Single- or
- Double-Deflection for Airflow Control
- 80/20 Variable, Two-Position or Fixed, Return Air Models
- Evaporative Cooling Packages
- Cooling Sections with Chilled Water or DX Coils
- Heating Sections with Hot Water, Steam or Electric Coils
- Spray and Bake Paint Finishing Configurations
- Specialty Finishes
