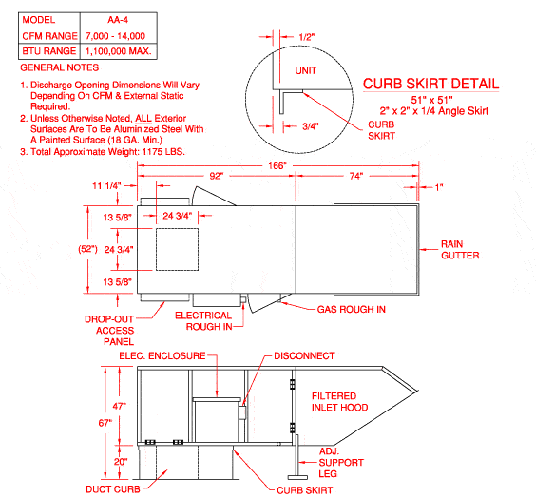

AA-4-2

MUA Tempered Fans Banner

AA-4-2


Standard Features

  • Horizontal or Upright Cabinets
  • Choice of Discharge Configurations
  • Weather-Resistant, Heavy-Gauge Aluminized Steel Construction
  • Designed to ANSI Standards
  • 30:1 Burner Turndown Capability
  • Maxitrol Series 14 Discharge Temperature Controls with Temp. Dial at the Unit (Some Models)
  • Maxitrol Series 14 Discharge Temperature Controls with Remote Temp. Dial (Some Models)
  • Multiple Hinged-Access Doors (Most Models)
  • Durable Two-Coat Paint Finish (Owner-Matched Colors at No Extra Cost)
  • Factory Piped and Wired
  • Control Circuit Fusing
  • Automatic Gas Modulation
  • High- and Low-Temp. Limit Switches
  • Flame Safeguard Controls with Remote Flame Reset
  • U.V. Flame Detection (> ½" gas inlet)
  • Non-Fused Disconnect Switch (Except on AA1700)
  • Low Fire Start
  • Motor Starter and Overload Protection
  • Low Airflow Switch
  • Fan Bearings Rated to a Minimum of 100,000 Hours (L-10 Life)
  • Remote Control Panel (NEMA 5 Enclosure)
  • Main Electrical Panel (NEMA 3R Enclosure)
  • 100% Factory Testing

Optional Features

  • ETL Certification to ANSI Design Standards
  • FM or IRI Manifolds
  • Maxitrol Series 14 Discharge Temperature Controls with Remote
  • Temp. Dial (for AA1700 through AA3 Models)
  • Maxitrol Series 44 Space Temperature Controls with Remote
  • Thermostat (Standard on "F" Model Option.)
  • DFM Space Temperature Controls with Digital Display and Build-In
  • Time Clock (Standard on "M" and "B" Model Options.)
  • Inlet Hoods or Plenums for Horizontal Models
  • Cabinet Legs or Plenums for Upright Models
  • Insulated Cabinet
  • Double-Wall Construction
  • Multiple Filtering Choices
  • Motorized Inlet or Discharge Dampers
  • Full or Duct Curb, Flat or Pitched
  • Fused Disconnect Switch
  • Vibration Isolation (Internal or External)
  • Motor Belt Guards
  • Service Platforms
  • Three- and Four-Way Discharge Diffusers with Single- or
  • Double-Deflection for Airflow Control
  • 80/20 Variable, Two-Position or Fixed, Return Air Models
  • Evaporative Cooling Packages
  • Cooling Sections with Chilled Water or DX Coils
  • Heating Sections with Hot Water, Steam or Electric Coils
  • Spray and Bake Paint Finishing Configurations
  • Specialty Finishes
